BSP: ESP32-S3-Korvo-2

HW Reference	HOW TO USE API	EXAMPLES

Overview

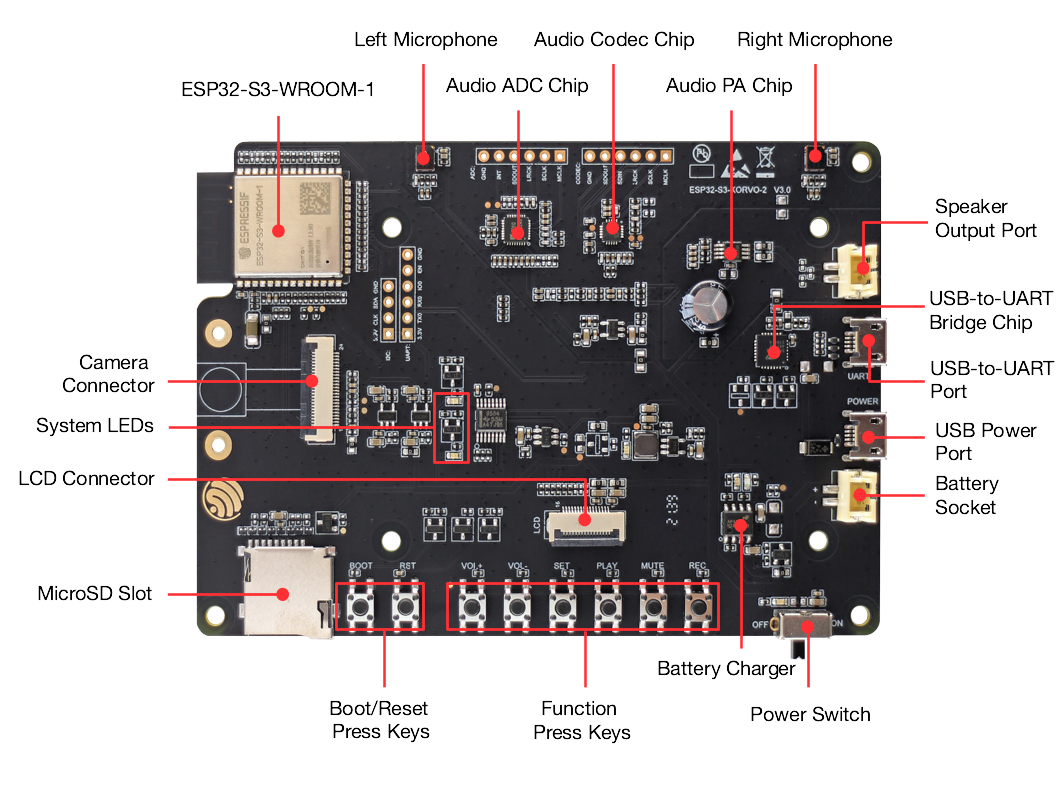

The ESP32-S3-Korvo-2 is a multimedia development board based on the ESP32-S3 chip. It is equipped with a two-microphone array which is suitable for voice recognition and near/far-field voice wake-up applications. The board integrates multiple peripherals such as LCD, camera, and microSD card. It also supports JPEG video stream processing. With all of its outstanding features, the board is an ideal choice for the development of low-cost and low-power network-connected audio and video products.

Capabilities and dependencies

Available	Capability	Controller/Codec	Component	Version
✔	📟 DISPLAY	ili9341	espressif/esp_lcd_ili9341 idf	^1 >=5.4
✔	⚫ LVGL_PORT		espressif/esp_lvgl_port	^2
✔	☝ TOUCH	tt21100	espressif/esp_lcd_touch_tt21100	^1
✔	🔘 BUTTONS		espressif/button	^4
✔	🎵 AUDIO		espressif/esp_codec_dev	~1.3.1
✔	🔈 AUDIO_SPEAKER	es8311
✔	🎤 AUDIO_MIC	es7210
✔	💡 LED		idf	>=5.4
✔	💾 SDCARD		idf	>=5.4
❌	🎮 IMU
✔	📷 CAMERA		espressif/esp32-camera	^2.0.13

Compatible BSP Examples

Example	Description	Try with ESP Launchpad
Audio Example	Play and record WAV file	Flash Example
Display Example	Show an image on the screen with a simple startup animation (LVGL)	Flash Example
Display, Audio and Photo Example	Complex demo: browse files from filesystem and play/display JPEG, WAV, or TXT files (LVGL)	Flash Example
Camera Example	Stream camera output to display (LVGL)	Flash Example
LVGL Benchmark Example	Run LVGL benchmark tests	-
LVGL Demos Example	Run the LVGL demo player - all LVGL examples are included (LVGL)	Flash Example
Display Rotation Example	Rotate screen using buttons or an accelerometer (`BSP_CAPS_IMU`, if available)	Flash Example
