# Soldered CAN Bus Breakout MCP2518FD Component

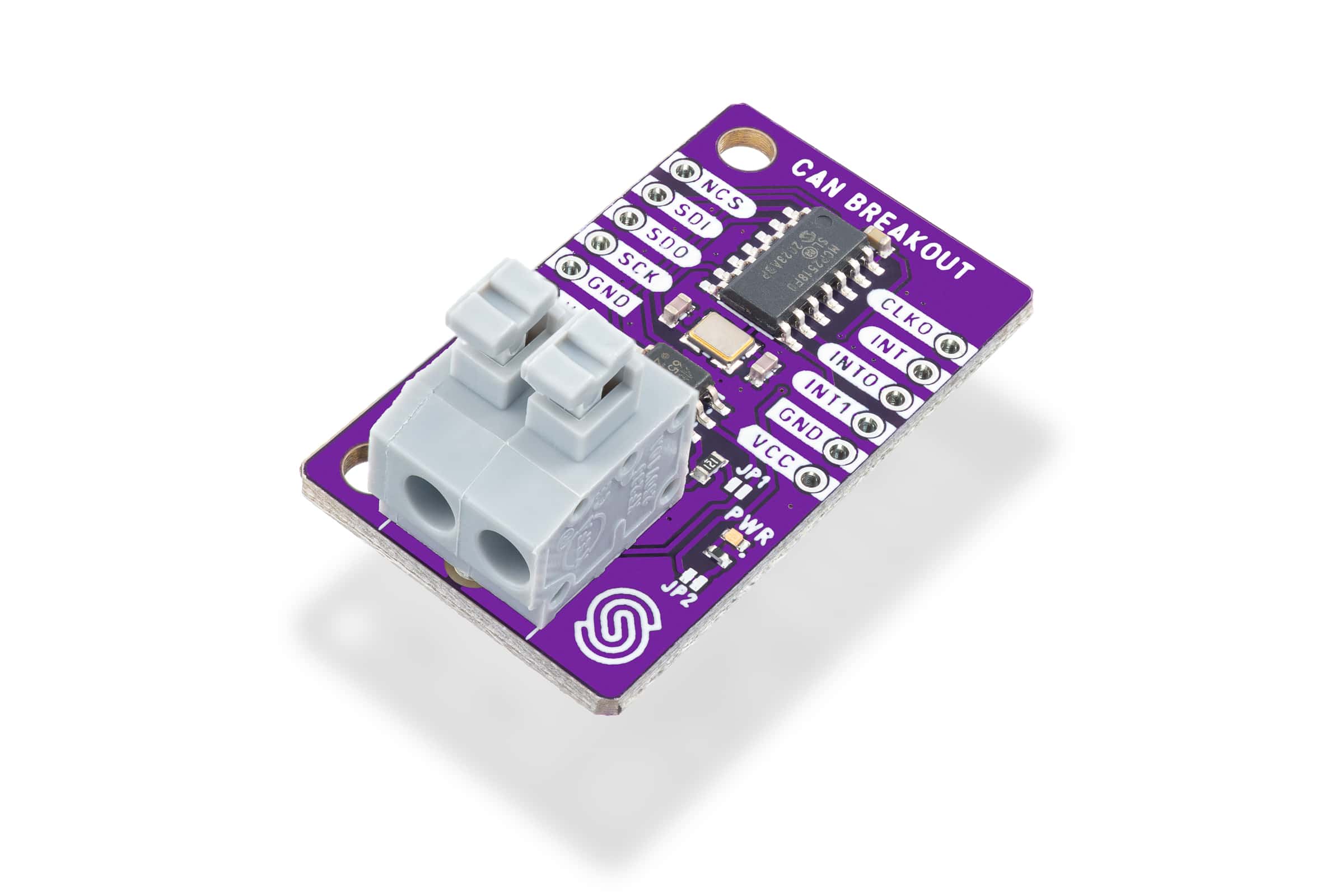

| ![CAN Bus Breakout MCP2518FD](https://soldered.com/cdn/shop/files/333020_featured-photo_d9566c.jpg) |
| :-----------------------------------------------------------------------------------------------------------: |
|                        [CAN Bus Breakout MCP2518FD](https://solde.red/333020)                        |

ESP-IDF driver for the Soldered CAN Bus Breakout board, built around the Microchip MCP2518FD CAN FD controller and driven over SPI. Handles both classic CAN 2.0 and CAN FD, at up to 1 Mbps arbitration and 8 Mbps data rate.

### Repository Contents

- **/src** - source files (.c)
- **/include** - header files (.h)
  - `soldered_mcp2518fd.h` - the public API
  - `mcp2518fd_dfs.h` - register map, bit definitions and object types
- **/examples** - examples for using the library
  - `can20_send` - send frames using CAN 2.0
  - `can20_recv_check` - receive CAN 2.0 frames by polling
  - `can20_recv_int` - receive CAN 2.0 frames using the INT pin
  - `can20_recv_mask_filt` - receive CAN 2.0 frames through a mask and filter
  - `canfd_send` - send frames using CAN FD
  - `canfd_recv_check` - receive CAN FD frames by polling
  - `canfd_recv_int` - receive CAN FD frames using the INT pin
  - `canfd_recv_mask_filt` - receive CAN FD frames through a mask and filter
  - `obdii_pids` - query a vehicle's OBD-II PIDs from the serial console
- **_other_** - idf_component.yml manifest file for ESP Component Registry


### Usage

The SPI bus belongs to your application, not to the driver, so that other devices can share it:

```c
spi_bus_config_t bus_cfg = {
    .mosi_io_num = GPIO_NUM_23,
    .miso_io_num = GPIO_NUM_19,
    .sclk_io_num = GPIO_NUM_18,
    .quadwp_io_num = -1,
    .quadhd_io_num = -1,
};
ESP_ERROR_CHECK(spi_bus_initialize(SPI2_HOST, &bus_cfg, SPI_DMA_CH_AUTO));

mcp2518fd_t can;
ESP_ERROR_CHECK(mcp2518fd_init(&can, SPI2_HOST, GPIO_NUM_5));

while (CAN_OK != mcp2518fd_begin(&can, CAN_125KBPS, MCP2518FD_20MHz)) {
    vTaskDelay(pdMS_TO_TICKS(100));
}
```

`mcp2518fd_begin()` sits in a retry loop because the controller needs a moment after power-up before it answers over SPI. `MCP2518FD_20MHz` is the oscillator the Soldered breakout is populated with.

**Sending and receiving:**

```c
uint8_t data[8] = {0, 1, 2, 3, 4, 5, 6, 7};
mcp2518fd_send_msg_buf(&can, 0x01, 0, 8, data);   // id, extended?, length, payload

if (CAN_MSGAVAIL == mcp2518fd_check_receive(&can)) {
    uint8_t len, buf[8];
    mcp2518fd_read_msg_buf(&can, &len, buf);      // read first, then ask for the ID
    uint32_t id = mcp2518fd_get_can_id(&can);
}
```

**CAN FD:** call `mcp2518fd_set_mode(&can, CAN_NORMAL_MODE)` before `mcp2518fd_begin()`, since the driver defaults to classic mode which cannot carry FD frames. Pass a dual bit rate such as `CAN_125K_500K` to `mcp2518fd_begin()`, and convert payload lengths over 8 bytes with `mcp2518fd_len2dlc()`.

**Masks and filters:** `mcp2518fd_init_filt_mask()` sets a filter and its mask together and links it to the RX FIFO. `mcp2518fd_init_mask()` and `mcp2518fd_init_filt()` set them separately. There are 32 of each, numbered 0 to 31.

### Original source

This is a port of the [Soldered CAN Bus Breakout MCP2518 Arduino library](https://github.com/SolderedElectronics/Soldered-CAN-Bus-Breakout-MCP2518-Arduino-Library), whose register level code comes from the Microchip MCP2518FD SDK and whose bit timing calculation comes from [acan2517FD](https://github.com/pierremolinaro/acan2517FD).

### Hardware design

Hardware design, BOM, gerbers, and 3D files for this board are in its [hardware repository](https://github.com/SolderedElectronics/CAN-Transceiver-MCP2518-board-hardware-design).

### Documentation

Access library documentation [here](https://docs.soldered.com/).
