# Soldered PCAL6416A Component

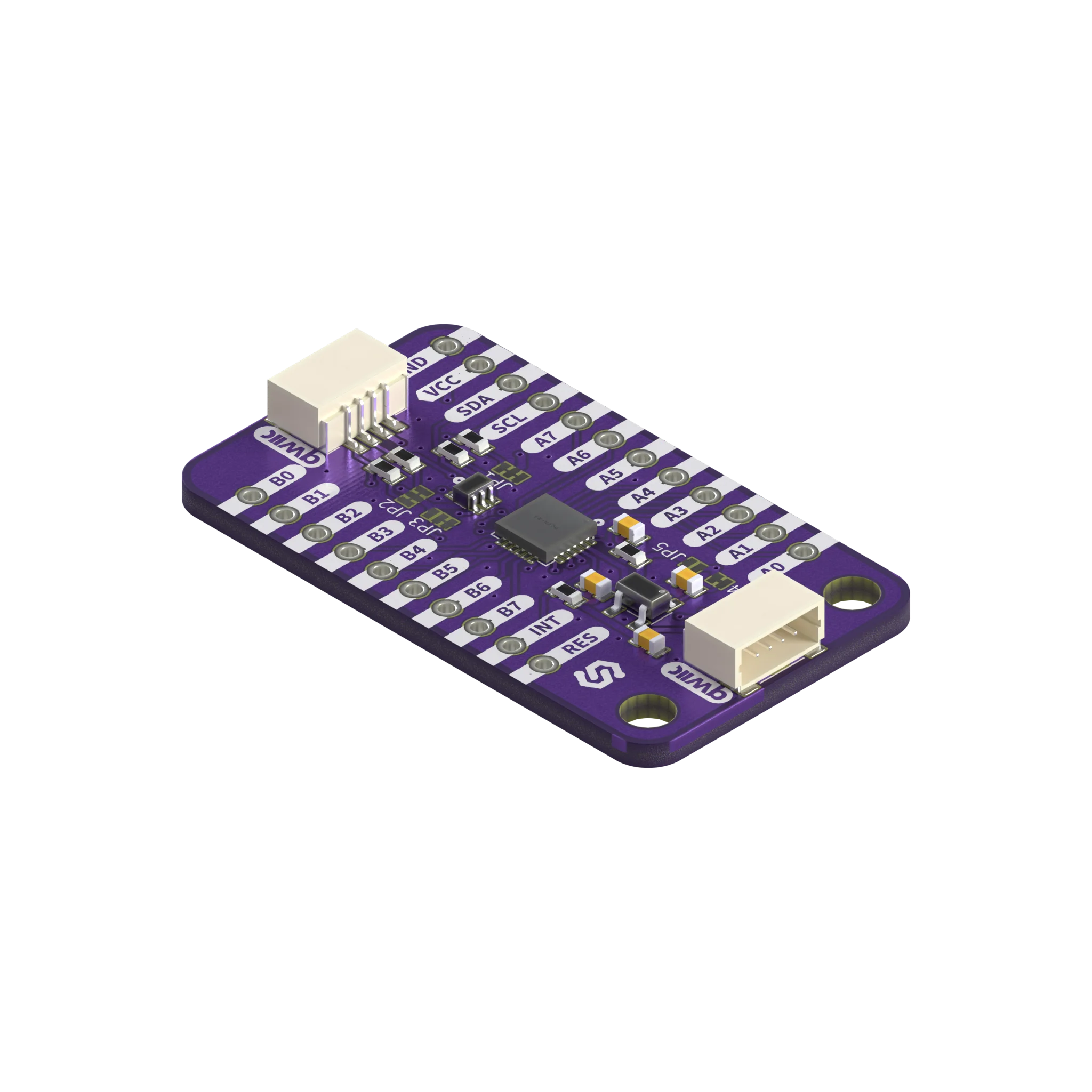

| ![GPIO Expander PCAL6416A Breakout](https://cms.soldered.com/products/333180/media/333180_photo_0681e1.webp) |
| :-------------------------------------------------------------------------------------------------------: |
|                      [GPIO Expander PCAL6416A Breakout](https://www.solde.red/333180)                      |

ESP-IDF I2C driver for the NXP PCAL6416A, a 16-bit I2C-bus/SMBus I/O expander with per-pin direction, polarity inversion, pull-up/pull-down, output drive strength, input latch, and maskable interrupt support. Part of the [Qwiic ecosystem](https://soldered.com/collections/qwiic-ecosystem).

### Repository Contents

- **/src** - source files (.c)
- **/include** - header files (.h)
- **/examples** - examples for using the library
- **_other_** - idf_component.yml manifest file for ESP Component Registry

### Hardware design

You can find hardware design for this board in _GPIO Expander PCAL6416A Breakout_ hardware repository.

### Documentation

Access library documentation [here](https://docs.soldered.com/).
