Board Support Package (BSP) for ESP32-S2-Kaluga kit

readme

BSP: ESP32-S2-Kaluga-Kit

HW Reference HOW TO USE API EXAMPLES Component Registry maintenance-status

Overview

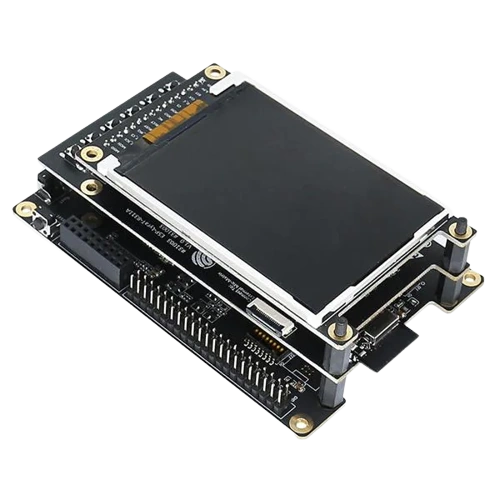

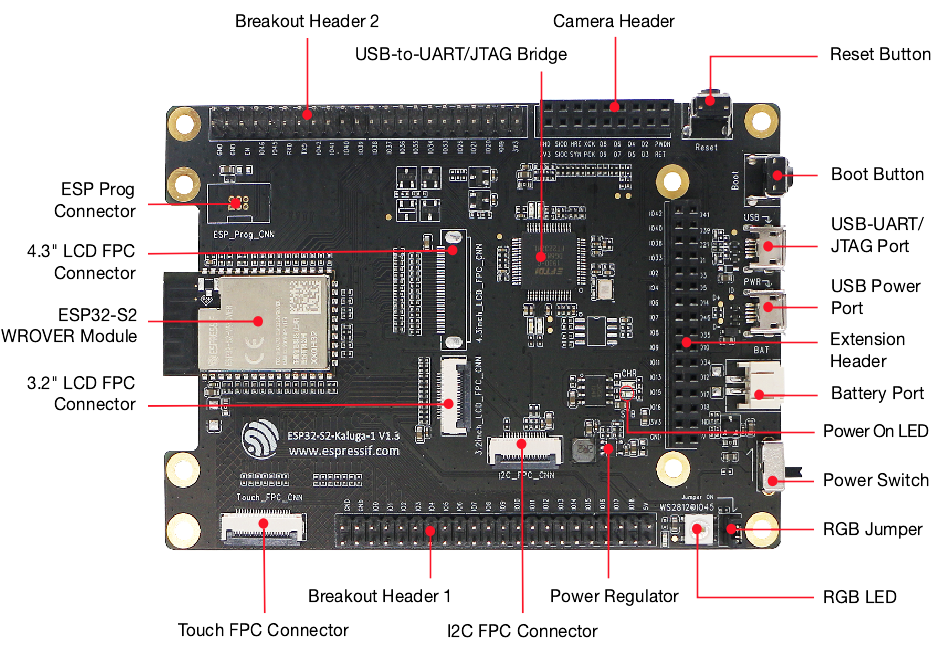

The ESP32-S2-Kaluga-1 kit v1.3 is a development kit by Espressif that is mainly created to demonstrate the ESP32-S2’s human-computer interaction functionalities and provide the users with the tools for development of human-computer interaction applications based on the ESP32-S2.

This Board support package consists of:

  • Smart RGB LED
  • LVGL graphics library
  • ES8311 mono audio codec
  • Touch pad configuration
  • Buttons configuration
  • Camera driver

Capabilities and dependencies

Available Capability Controller/Codec Component Version
📟 DISPLAY st7789 idf >=5.4
⚫ LVGL_PORT espressif/esp_lvgl_port ^2
☝ TOUCH
🔘 BUTTONS espressif/button ^4
🎵 AUDIO espressif/esp_codec_dev ~1.3.1
🔈 AUDIO_SPEAKER es8311
🎤 AUDIO_MIC es8311
💡 LED idf >=5.4
💾 SDCARD
🎮 IMU
📷 CAMERA espressif/esp32-camera ^2.0.14

Compatible BSP Examples

Example Description Try with ESP Launchpad
Audio Example Play and record WAV file Flash Example
Display Example Show an image on the screen with a simple startup animation (LVGL) Flash Example
Camera Example Stream camera output to display (LVGL) Flash Example
LVGL Benchmark Example Run LVGL benchmark tests -
LVGL Demos Example Run the LVGL demo player - all LVGL examples are included (LVGL) Flash Example

Links

Target

License: Apache-2.0

Tags

To add this component to your project, run:

idf.py add-dependency "espressif/esp32_s2_kaluga_kit^5.0.0~1"
